Parameter:
Model No: TM050RDH03-41
Brand: TIANMA
LCD Size: 5inch
Aspect Ratio: 15:9
Touch: No
Driver element: a-Si TFT active matrix
Relosution: 800(RGB)×480 , WVGA
Brightness: 250cd/m2
Viewing angle: 12 o’clock
Color: 16.7M
Display Mode: TM with Normally White
Active area: 108.00x64.80 mm
Module Size: 120.70x75.80x3.10 mm
Interface: TTL RGB 24bits
Drive IC: Gate IC-HX8664-B00BPD400-B , Source IC-HX8264-D02DPD400-A
Working Temp.: -20 ~ 70 °C
Storage Temp.: -30 ~ 80 °C
Lifetime:20K(min.)
Packing: 112 pcs/ctn, 9.51±0.52 Kgs, 530x355x255 mm (L×W×H)

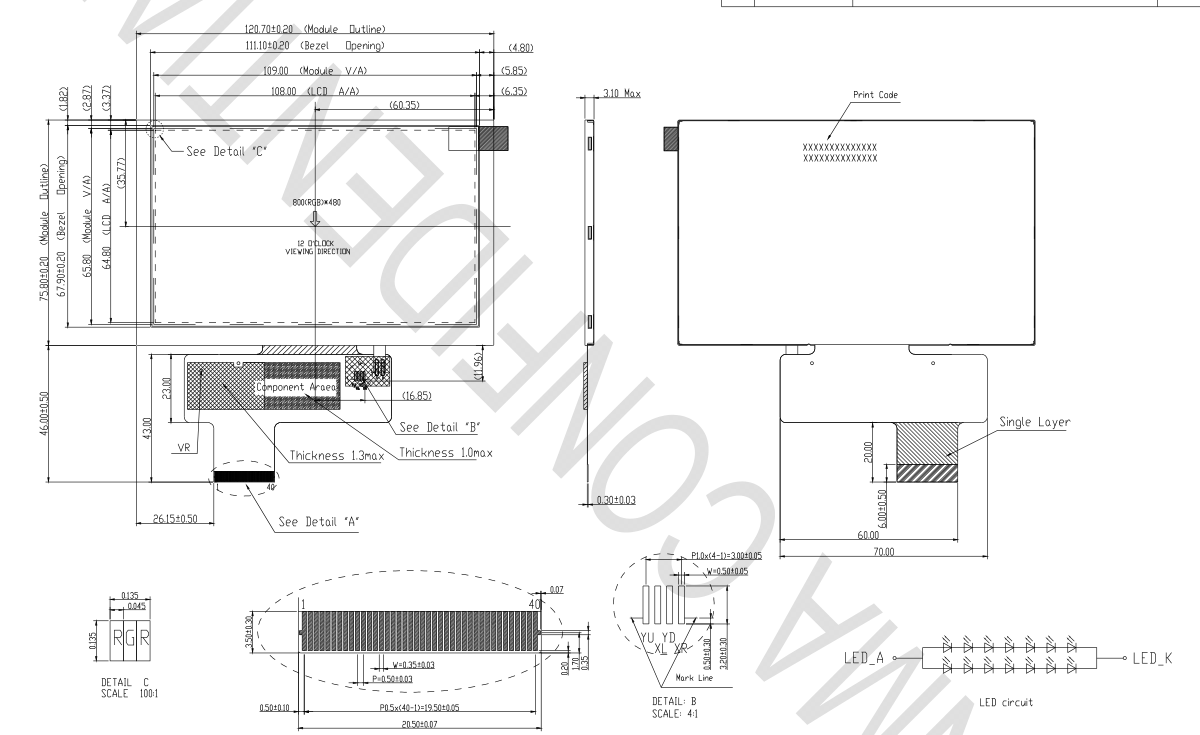

Drawing:
Application:
Medical Equipment,Industrial Equipoment,Car GPS Navigators,Printer,Elevatordisplay etc...
