General Specifications
Brand: TIANMA
Size: 10.4 inch
Resolution: 800(RGB) x 600
Brightness: 350nits
Interface: TTL 24bits
Technology Type: a-Si
Pixel Pitch (mm): 0.264x0.264
Pixel Configuration: R.G.B. Vertical Stripe
Display Mode: TM with Normally White
Surface Treatment(Up Polarizer): Anti-Glare(3H)
Viewing Direction: 12 o’clock
Gray Scale Inversion Direction: 6 o’clock
LCM (W x H x D) (mm): 228.40x175.40x6.20
Active Area(mm): 211.20x158.40
With /Without TSP: Without TSP
Matching Connector Type: CN1:Hirose FH28-60S-0.5SH
CN2:JST BHSR-02VS-1
Weight (g): 360
Interface: TTL(24bit RGB)
Color Depth: 16.7M
Driver IC: HX8282*1,HX8696*1
Operation Temperature: -20~70
Storage Temperature: -30~80

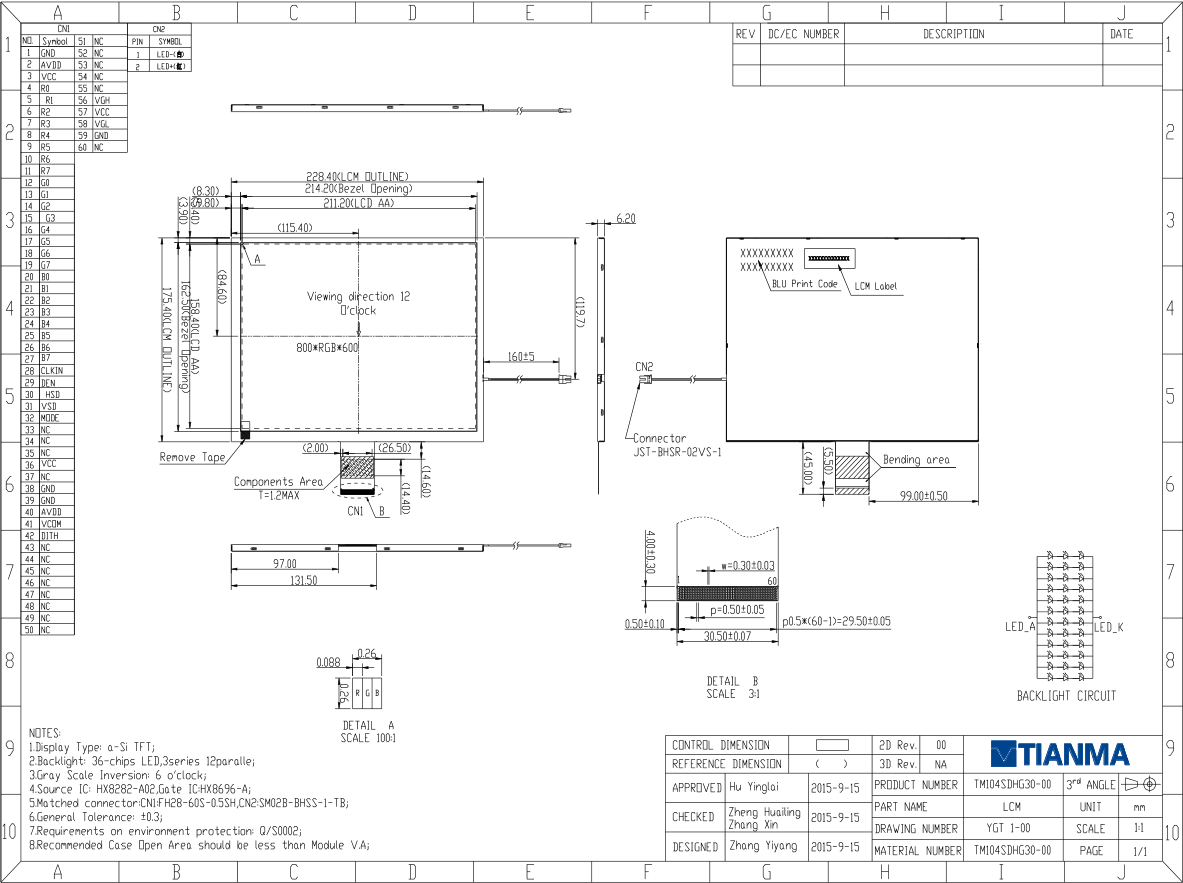

Mechanical Drawing
