Parameter:

Parameter




General Specification




Item	Contents	Unit
LCD Type	TFT	-
LCD Panel Grade	INNOLUX	-
Display color	16.7M
Viewing Direction	12	O'clock
Gray scale inversion direction	6	O'clock
Operationg temperature	-20~+70	℃
Storage temperature	-30~+80	℃
Module size	Refer to outline drawing	mm
Active Area (WxH)	95.04x53.86	mm
Number of Dots	480x272	dots
Controller	ILI6480B	-
Power Supply Voltage	3.3	V
Outline Dimensions	Refer to outline drawing	-
Backlight	10-LEDs	pcs
Weight	---	g
Interface	RGB-24bits (HV mode)	-


Optical Characteristics




Item	Symbol	Condition	Min.	Type.	Unit
Brightness	Bp	θ=0° =0°	-	500	cd/m2
Uniformity	Bp		80	-	%
Viewing Angle	3:00		65	-	Deg
	6:00	Cr≥10	55	-
	9:00		65	-
	12:00		65	-
Contrast Ratio	Cr	θ=0° =0°	350	500	-
Response  time	Tr		-	10	ms
	Tr		-	10	ms
NTSC Ratio	S	θ=0° =0°	50	60	%

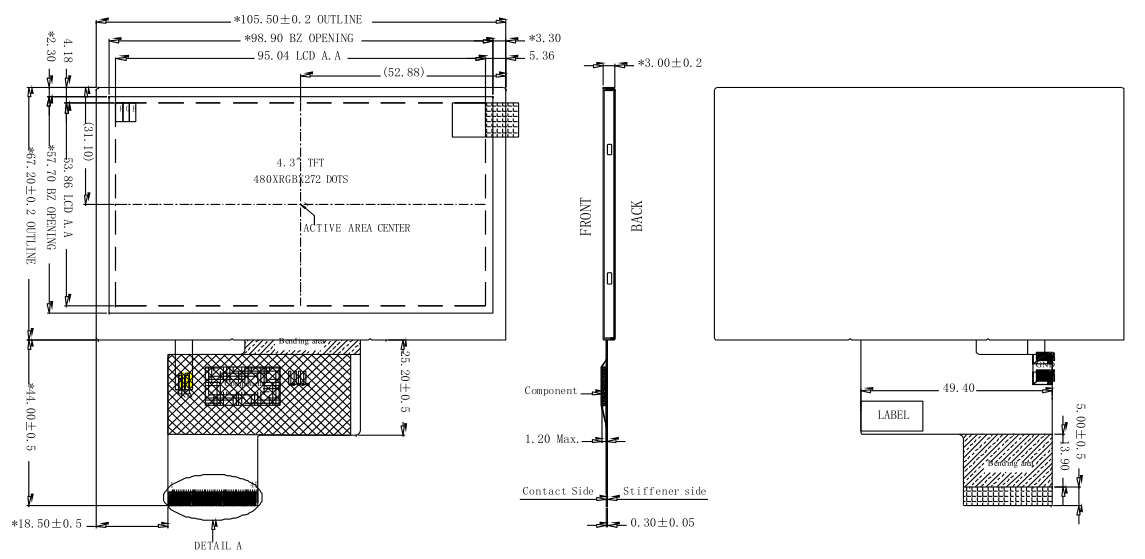

Outline Drawing
