General Specification
Brand: TIANMA
Size: 9.7inch
Resolution: 1024(RGB)x768
Brightness: 350nits
Interface: LVDS 6-bit
Color Depth: 262K
Operation Temperature: -20~70
Storage Temperature: -30~80
Technology Type: a-Si
Pixel Configuration: R.G.B. Vertical Stripe
Display Mode: TM with Normally White
Surface Treatment(Up Polarizer): Clear
Viewing Direction: 12 o’clock
Gray Scale Inversion Direction: 6 o’clock
LCM (W x H x D) (mm): 210.20 (W) x166.30(H)x3.55(D)
Active Area(mm): 196.61 (W) x 147.46 (H)
With /Without TSP: Without TSP
Weight (g): 200
LED Numbers: 36 LEDs

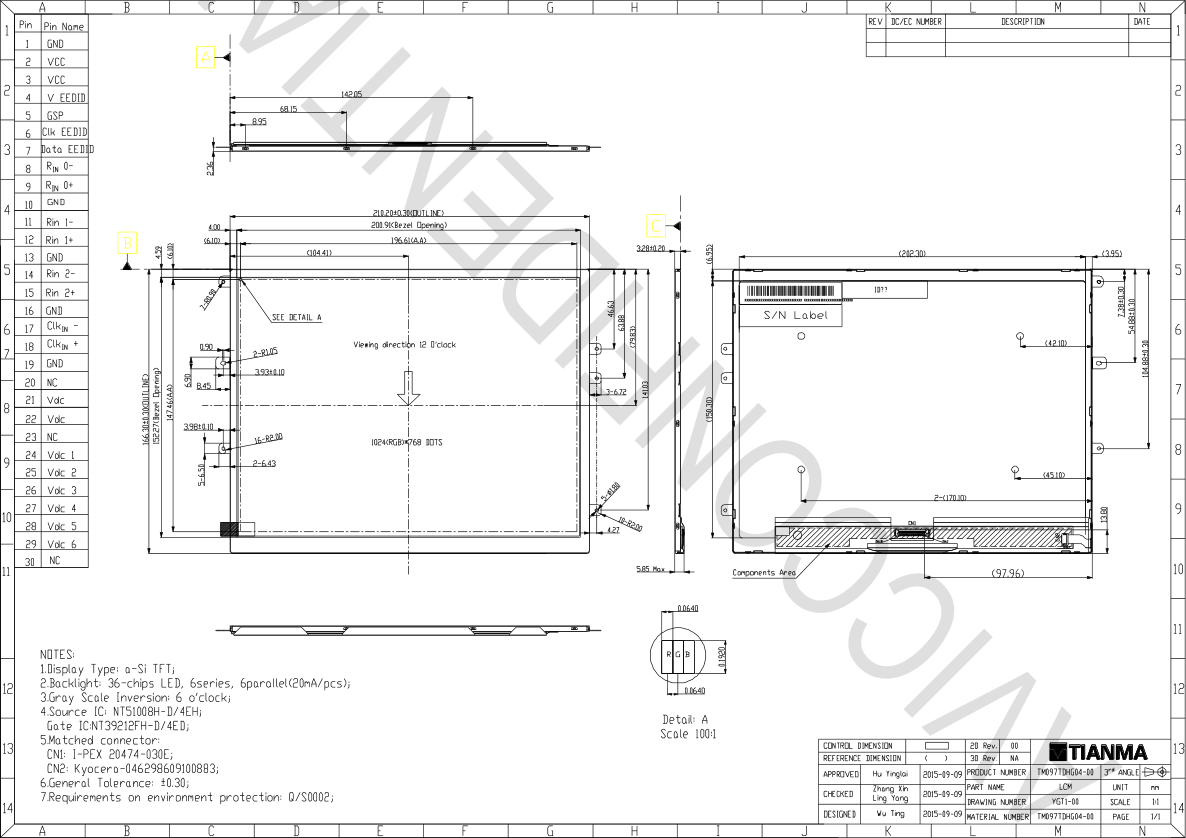

Mechanical Drawing
